Marque
Dixon®

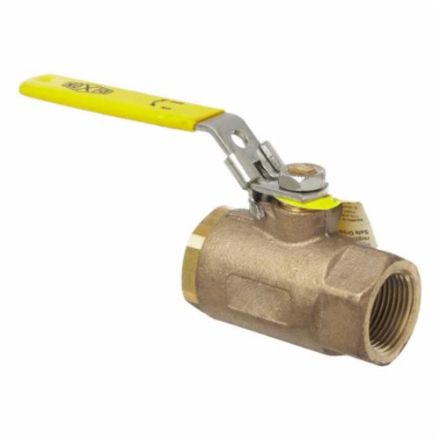

3/4" Brass Locking Ball Valve
- GLD# 9952991
- MFG# BBLV75
Qté min. de commande 1
Description
Dixon® Ball Valve, 3/4 in Nominal, FNPT, 600 psi WOG, 150 psi WSP, Full/Standard Port, Media: Water, Oil, Gas and Steam, Locking Handle Actuator, Polished Chrome Brass Ball, Brass Body, RPTFE Stem, Bronze, 3-1/4 in L x 6-15/16 in W, Domestic
Spécifications
| UNSPSC | 40141607 |
|---|---|
| Body Material | Brass |
| End Style | FNPT |
| Media | Gas, Oil, Steam and Water |
| Nominal Size | 3/4 in |
| Pressure Rating | 600 psi WOG, 150 psi WSP |
| Softgoods Material | RPTFE Stem |
| Dimensions | 3-1/4 in L x 6-15/16 in W |
| Domestic/Import | Domestic |
| Port Type | Full/Standard |
| Finish | Bronze |
| Ball Material | Polished Chrome Brass |
| Actuator Type | Locking Handle |
Caractéristiques
- Stainless steel sliding lock mechanism secures handle in open or closed position, can be padlocked opened or closed
- Full port and standard port valves are both repairable
- Blow-out proof RPTFE stem
- Plated steel handles and nuts with vinyl sleeves
