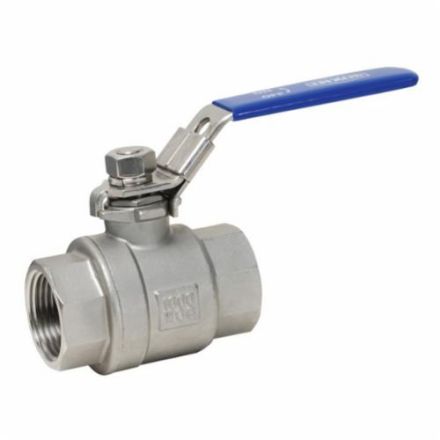

3/4 Locking Ball Valve D: 868

GLD#
DIXON-130225
MFG#
SSLBV75

Connectez-vous pour afficher les disponibilités et les prix

Qté min. de commande 1

Description

Dixon® Ball Valve, Series: SSLBV, 3/4 in Nominal, FNPT, 1000 psi WOG, 100 psi WSP, -20 to 356 deg F, Full Port, Media: Water, Oil, Gas and Steam, Manual/Locking Handle Actuator, 316 Stainless Steel Ball, 316 Stainless Steel Body, 316 Stainless Steel Stem Trim, RPTFE Seat/Joint Gasket/Thrust Washer

Spécifications

Plus d'infos
UNSPSC	40141607
Body Material	316 Stainless Steel
End Style	FNPT
Media	Gas, Oil, Steam and Water
Nominal Size	3/4 in
Pressure Rating	1000 psi WOG, 100 psi WSP
Softgoods Material	RPTFE Seat/Joint Gasket/Thrust Washer
Port Type	Full
Series	SSLBV
Trim Material	316 Stainless Steel Stem
Temperature Rating	-20 to 356 deg F
Ball Material	316 Stainless Steel
Actuator Type	Manual/Locking Handle
