Marque
Dixon®

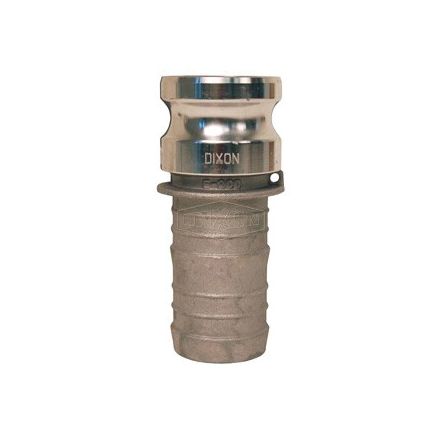

ADAPTER CAM _ GRV 3IN AL IMPORT 125PSI
- GLD# 4031063170320137000
- MFG# G300-E-AL
Qté min. de commande 1
Description
Dixon® adaptateur à came et rainure, type e, type de raccord/connecteur: adaptateur, 3 po taille nominale, adaptateur mâle x tuyau queue, 6-7/32 po longueur, 125 psi, aluminium, 3-19/32 po diam., importer
Spécifications
| UNSPSC | 40141734 |
|---|---|
| Application | Designed for use with liquids |
| Domestic/Import | Import |
| End Style | Male Adapter x Hose Shank |
| Fitting/Connector Type | Adapter |
| Material | Aluminum |
| Nominal Size | 3 in |
| Pressure Rating | 125 psi |
| Type | Type E |
| Length | 6-7/32 in |
| Dimensions | 3-19/32 in Dia |
Caractéristiques
- Designed to interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- For use with liquid
- A380 permanent mold aluminum
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 125 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
Guides & Manuels
Dixon_Valve_Coupling_G100-F-AL_Catalog.pdf
