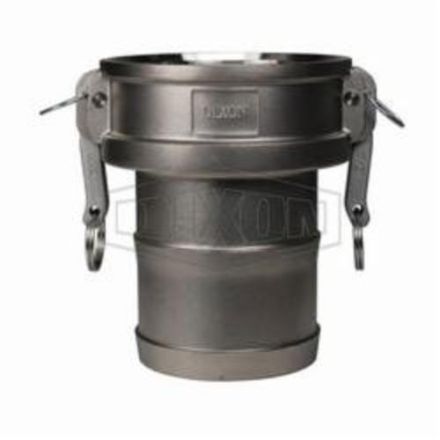

4" Part "C" STAINLESS IMPORTATION

GLD#
4029367991430394000
MFG#
G400-C-SS

Connectez-vous pour afficher les disponibilités et les prix

Qté min. de commande 1

Description

Dixon® coupleur à came et rainure, type c, gamme: Global, type de raccord/connecteur: coupleur, 4 po taille nominale, coupleur femelle x tuyau queue, 6-9/16 po longueur, 100 psi, acier inoxydable 316, domestique

Spécifications

Plus d'infos
UNSPSC	40141734
Application	Designed for use with liquids
Domestic/Import	Domestic
End Style	Female Coupler x Hose Shank
Fitting/Connector Type	Coupling
Material	316 Stainless Steel
Nominal Size	4 in
Pressure Rating	100 psi
Series	Global
Type	Type-C
Length	6-9/16 in

Caractéristiques

11 in open x 6-1/2 in closed across cam arm
316 investment cast stainless steel
Stainless steel handle
Produced to interchange with all product produced to commercial item description A-A-59326D
Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
Do not use in connection with drinking water
Wash hands after handling

Guides & Manuels

Dixon_Valve_Coupling_G200-A-BR_Catalog.pdf
