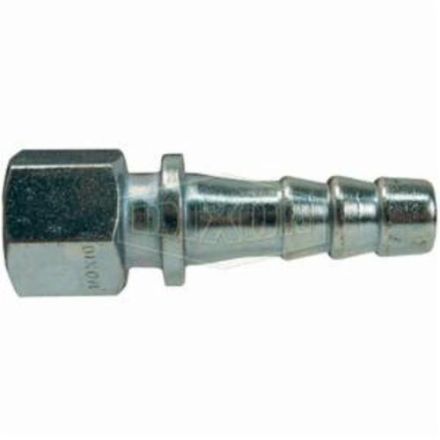

1/2 X 3/8 Npt Fem Nipple

GLD#
9897801
MFG#
3550

Temps de livraison estimé

24 à 48h

Connectez-vous pour afficher les disponibilités et les prix

Qté min. de commande 1

Description

Dixon®; mamelon, gamme: 3500, 3/8 x 1/2 po nominal, fnpt x tuyau queue style extrémité, 2-3/4 de longueur, pression 600 psi, 70 deg f, acier, zingué, domestique

Spécifications

Plus d'infos
UNSPSC	40141734
Application	For air and water service only
Domestic/Import	Domestic
End Style	FNPT x Hose Shank
Finish	Zinc Plated
Material	Steel
Nominal Size	3/8 x 1/2 in
Pressure Rating	600 psi
Series	3500
Temperature Rating	70 deg F
Length	2-3/4 in

Caractéristiques

The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type
To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose
To construct a whip hose, connect one end of a short (3 to 10 ft ) air hose to the air tool using a 3500 type steel nipple
Connect the other end of the hose to the air supply using the standard quick-acting coupling
The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection
The whip hose should remain permanently connected to the tool
For air and water service only
Do not use in connection with drinking water
Wash hands after handling

Guides & Manuels

Dixon_3505WF_Catalog.pdf
