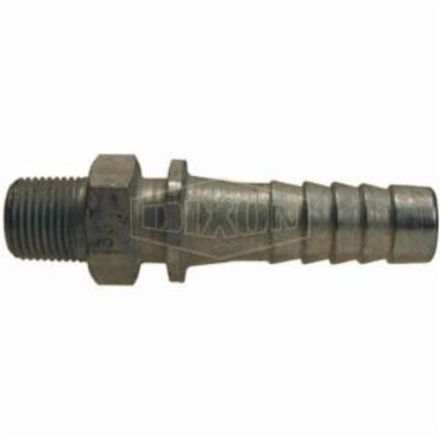

RACCORD BARBILLON 3/4" X 1/2" NPT MALE ACIER

GLD#
9891714
MFG#
3513

Connectez-vous pour afficher les disponibilités et les prix

Qté min. de commande 1

Description

Dixon® Nipple, Series: 3500, 1/2 x 3/4 in Nominal, MNPT x Hose Shank End Style, 4-3/32 in Length, 600 psi Pressure, 70 deg F, Steel, Zinc Plated, Domestic

Spécifications

Plus d'infos
UNSPSC	40141734
Application	For air and water service only
Domestic/Import	Domestic
End Style	MNPT x Hose Shank
Finish	Zinc Plated
Material	Steel
Nominal Size	1/2 x 3/4 in
Pressure Rating	600 psi
Series	3500
Temperature Rating	70 deg F
Length	4-3/32 in

Caractéristiques

The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type
To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose
To construct a whip hose, connect one end of a short (3 to 10 ft ) air hose to the air tool using a 3500 type steel nipple
Connect the other end of the hose to the air supply using the standard quick-acting coupling
The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection
The whip hose should remain permanently connected to the tool
For air and water service only
Do not use in connection with drinking water
Wash hands after handling
