Marque
Dixon®

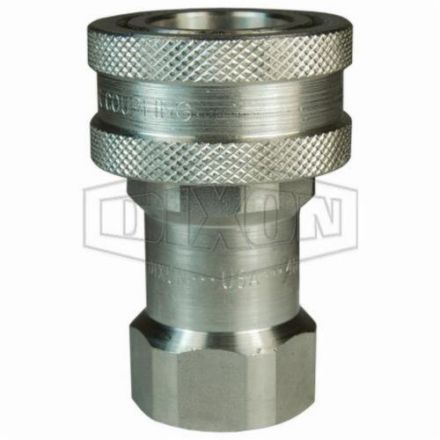

COUPLING 1/4-18 FNPT 303 SST 7/8IN H SER
- GLD# DIXON-105574
- MFG# 2HF2-S
Qté min. de commande 1
Description
Dixon® Poppet Valve Coupling, Interchange, Series: H Series, 1/4-18 Nominal, FNPT, 7/8 in Hex, 2.26 in Length, 3500 psi, -40 to 250 deg F, 303 Stainless Steel, 1.12 in OD
Spécifications
| UNSPSC | 27121701 |
|---|---|
| End Style | FNPT |
| Nominal Size | 1/4-18 |
| Pressure Rating | 3500 psi |
| Type | Interchange |
| Material | 303 Stainless Steel |
| Dimensions | 1.12 in OD |
| Hex Size | 7/8 in |
| Length | 2.26 in |
| Series | H Series |
| Temperature Rating | -40 to 250 deg F |
Caractéristiques
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Nitrile (Buna-N) seals are standard
- PTFE anti-intrusion ring
- Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
- 31500 psi burst pressure
