Marque
Dixon®

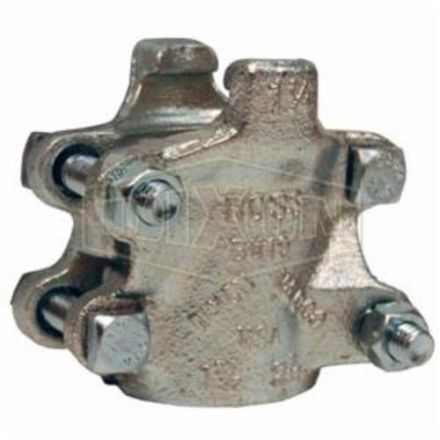

COLLIER À 4 BOULONS DIXON B24 BOSS, 2-24/64 À 2-36/64 PO NOMINAL, BANDE DE FER, DOMESTIQUE
- GLD# 9892172
- MFG# B24
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description
Dixon® 4-Bolt Clamp, Series: Boss™, 2-24/64 to 2-36/64 in Nominal, 4-1/8 in Length, 3-31/32 in Width, 40 ft-lb, Iron Band, Zinc Plated, Domestic
Spécifications
| UNSPSC | 31162906 |
|---|---|
| Domestic/Import | Domestic |
| Finish | Zinc Plated |
| Series | Boss™ |
| Width | 3-31/32 in |
| Band Material | Iron |
| Length | 4-1/8 in |
| Nominal Size | 2-24/64 to 2-36/64 in Hose |
| Torque Rating | 40 ft-lb |
Caractéristiques
- 4-bolt type clamp with 2 gripping fingers and 2 clamp sections
- Bolts in Boss™ clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
- Always tighten bolts to their specified torque value
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their length, diameter, overall thread length and material hardness
- These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only
- Torque values for clamps are based on dry bolts, the use of lubricant on bolts will adversely effect clamp performance
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
