Marque
Starrett®

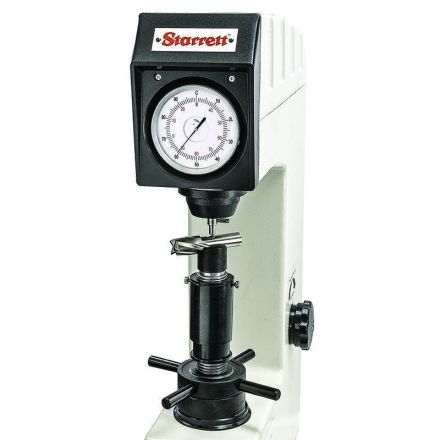

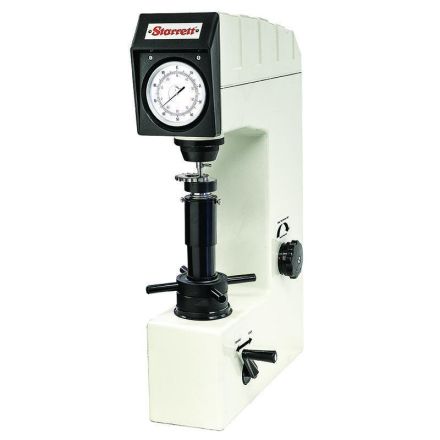

HARDNESS TESTER, ANALOG 3814
- GLD# STARR-1000811
- MFG# 67754
- UPC 49659677546
Qté min. de commande 1
Description
Starrett testeur de dureté de paillasse, gamme : global series, rockwell une échelle à léchelle 80, affichage à cadran analogique, 0.1 ha de résolution, 6.6 po profondeur de gorge, 8-1/2 po largeur totale, 20 po profondeur totale, 30 po de hauteur hors tout, corps en fonte
Spécifications
| UNSPSC | 41114611 |
|---|---|
| Application | For lab, workshop, toolroom and inspection department applications |
| Scale Type | Rockwell A Scale 80 |
| Series | Global Series® |
| Body Material | Cast Iron |
| Display Type | Analog Dial |
| Overall Depth | 20 in |
| Overall Height | 30 in |
| Overall Width | 8-1/2 in |
| Resolution | 0.1 HA |
| Throat Depth | 6.6 in |
Caractéristiques
- Ability to handle rockwell scales A through H and K
- Stable cast iron construction
- Provides reliable rockwell hardness values on all types of metal and alloys, hard or soft and in many shapes
- Ideal basic hardness testing for many typical applications
- Hydraulic dashpot system is a test force control
- Dead weight applies test force application
- 0 to 100 HA measuring range
- 6.69 in H maximum test
- 10Kgf minor load
- Rockwell B scale 90 and rockwell C scale 63
