Marque
Milwaukee®

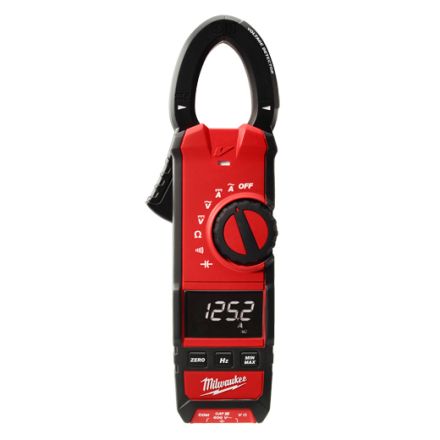

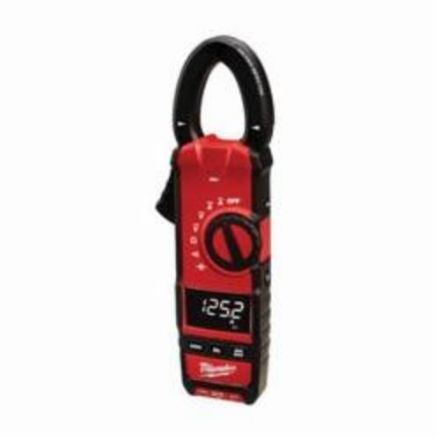

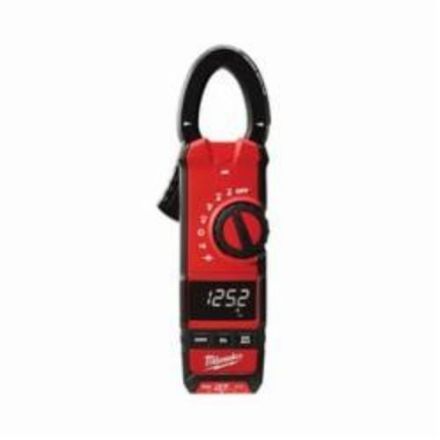

MULTIMÈTRE À PINCES, LECTURES DU COURANT, C.A./C.C.
- GLD# 4272237868350664000
- MFG# 2237-20
- UPC 045242173778
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Spécifications
| UNSPSC | 41113630 |
|---|---|
| Application | For HVAC/R applications |
| Dimensions | 9-1/2 in L |
| Display Type | High Contrast White on Black LCD |
| Frequency Rating | 1 Hz to 10 kHz |
| Resistance | 6 kOhm |
| Safety Rating | CAT III 600 VAC |
| AC Current Accuracy | +/-2% +/-5 Digits |
| Electrical Ratings | 600 A, 600 VAC/VDC |
| Jaw Capacity | 1.3 in |
| Operating Temperature | -40 to 752 deg F |
| Power Source | AA Alkaline Battery |
| Voltage Accuracy | +/-1.5% RDG +/-4 RDG AC, +/-1.0% RDG +/-3 RDG DC |
Caractéristiques
- True-RMS for accurate measurement in all applications
- Thin jaw profile for easier wire measurement in panels or in bundles
- AC current range - 0 to 600 A with accuracy of (+/- 2% riding +/- 5 digit) at 50/60 Hz, peak 1500 A with accuracy of (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz, CF equals to 2.5 at 600 A, add 2% at CF> 2 , CF equals 3 at 500 A, <=5 A, add 3 digit, 0 to 600 A with accuracy of (+/- 1.5% riding +/- 5 digit) at 50/60 Hz and (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz
- Resistance range - 600 Ohm/6 kOhm with accuracy (+/-1%rdg+/-5dgt)
- AC voltage range - 0 to 600 V with accuracy of (+/-1.5% riding +/-4 digit) at 50/60 Hz and (+/-3.5% riding+/-5digit) at 40 to 400 Hz
- DC voltage range - 60/600 V with accuracy of +/-(1% riding +/-3 digits)
Guides & Manuels
IDW_DOCUMENT_d5038a8407ceb991f2bc1c9833223cd20f839fcae0eeee280bc80fc21cc978f2.pdf
