Marque
JET

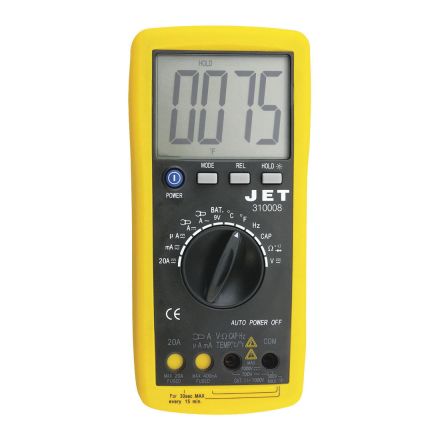

MULTIMETRES NUMERIQUE
- GLD# 9905518
- MFG# 310006
- UPC 059629829561
Qté min. de commande 1
Description
JET multimètre numérique, 20 à 750 vca, 200 mv à 1000 V c.c., 20 UA à 20 ma à 200 ma à 200 a ac, 20 de ma à 200 ma à 20 a cc, fréquence de 2 à 20 kHz, résistance de 200 ohms à 200 mohm, indice de sécurité: iec-1010, cat. ii 600v, capacité 2 nf à 20 uf, écran LCD, test de diode 1 ma / 2,8 v, -40 à 1000 deg c
Spécifications
| UNSPSC | 41113630 |
|---|---|
| Application | AC/DC Current, AC/DC Voltage, Capacitance, Diode Check, Frequency, Resistance, Temperature and Transistor |
| Display Type | LCD |
| Frequency Rating | 2 to 20 kHz |
| Amperage Rating | 20 uA to 20 mA to 200 mA to 20 A AC, 20 mA to 200 mA to 20 A DC |
| Capacitance | 2 nF to 20 uF |
| Diode Test | 1 mA/2.8 V |
| Resistance | 200 Ohm to 200 MOhm |
| Safety Rating | IEC-1010, CAT II 600V |
| Temperature Rating | -40 to 1000 deg C |
| Voltage Rating | 20 to 750 VAC, 200 mV to 1000 VDC |
Caractéristiques
- 12-speed capability allows for a broad assortment of drilling applications
- Fully hinged belt and pulley cover and quick adjust motor mount permit fast changes of spindle speed
- Worktable with quick-release clamp rotates and tilts to 45 deg right and left
- Slots in worktable and base permit easy clamping of the workpiece
- Positive depth setting mechanism uses a threaded rod and two locknuts for accuracy
- Built-in work lamp with separate switch (use outdoor rated bulb, not included)
- Drill chuck and key standard equipment
- Full 22 in swing for easy drilling of larger work pieces
- Safety on/off switch with removable lock key
Guides & Manuels
JET_310006_Specification_Sheet.pdf
