Marque
Proto®

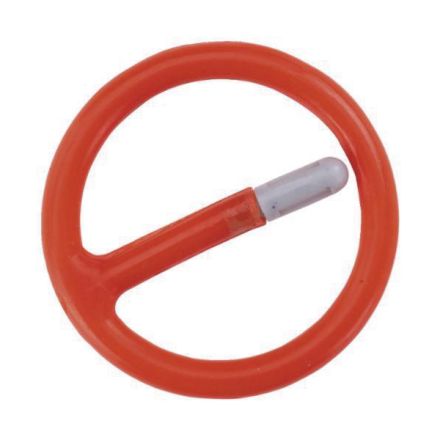

ANNEAU DE RETENUE AVEC TIGE PR.3/4" x 1 7/16"
- GLD# 9928050
- MFG# JRR07523
- UPC 662679978013
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description
Proto® bague de retenue, anneau de friction, 3/4 po prise, 1-5 / 8 de longueur totale, à utiliser avec: douille à chocs, résine / acier, plastifié, rouge, 3/16 po hx 1-5 / 8 po l
Spécifications
| Couleur | Red |
|---|---|
| UNSPSC | 27112832 |
| Application | For secure sockets onto drive tools |
| Dimensions | 3/16 in H x 1-5/8 in W |
| Drive Size | 3/4 in |
| Finish | Plastic Coated |
| Material | Resin/Steel |
| Overall Length | 1-5/8 in |
| Suitable For Use With | Impact Socket |
| Type | Crush Gauge |
| Impact Rated | Non |
Caractéristiques
- Retaining rings are used to help secure sockets onto drive tools
- They are not intended to bear any load
- The rotational forces are between the drive tool and the socket
- Designed with a resin crush gauge to help identify when to replace worn sockets
- The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced
- Drive tool and socket should line up when in use and should not pinch the crush gauge
- Cracked sockets and or worn drive tools cause each other to turn excessively in relation to each other
- This action pinches the small fin or the crush gauge on these retaining rings
- If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced
- 1-piece construction, no loose parts
