Marque
Chicago-Latrobe®
120 7/8
- GLD# GREEN-103371
- MFG# 49756
Qté min. de commande 1
Description

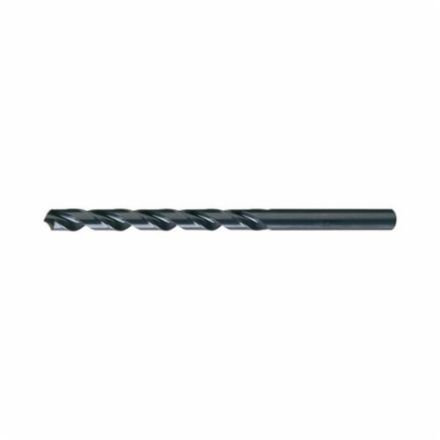

Chicago-Latrobe® Taper Length Drill, General Purpose, Series: 120, 7/8 in Drill - Fraction, 0.875 in Drill - Decimal Inch, 1 in Overall Length, 6-1/8 in Cutting Depth, Spiral Flute, 6-1/8 in Flute Length, 7/8 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Carbon Steel, Alloy Steel and Cast Iron
Spécifications
| UNSPSC | 23241606 |
|---|---|
| Cutting Depth | 6-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Size - Decimal Inch | 0.875 in |
| Drill Size - Fraction | 7/8 in |
| Finish | Black Oxide |
| Flute Length | 6-1/8 in |
| Flute Type | Spiral |
| Material | HSS |
| Overall Length | 1 in |
| Point Type | Conventional |
| Series | 120 |
| Shank Size | 7/8 in |
| Shank Type | Straight |
| Type | General Purpose |
| Through Coolant (Yes/No) | Non |
| Point Angle | 118 deg |
| Applicable Materials | Alloy Steel, Carbon Steel, Cast Iron |
Caractéristiques
- General purpose geometry for drilling in a wide range of operating conditions and materials
- Taper length provides longer overall length and flute length for deeper drilling
- Peck cycles may be appropriate for deep hole drilling
- Black oxide finish provides increased wear resistance and added lubricity
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
- Oxide prevents chip building, galling and welding on the workpiece
- Spiral flutes are constructed with a higher flute angle to remove chips more easily
