Marque
Kennametal®
PASTILLE NG3062R KC5025
- GLD# 4364063326330169000
- MFG# 2599521
Qté min. de commande 1
Description

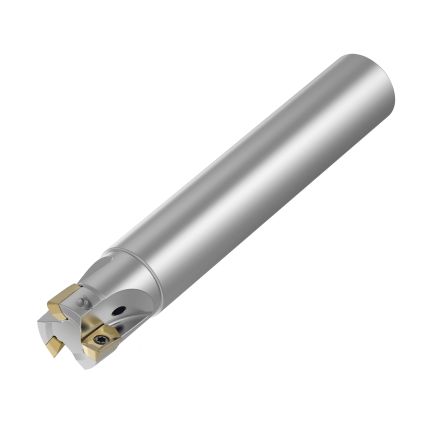

Kennametal® Indexable Square Shoulder End Mill, Series: Mill 1-7™, 1/2 in Diameter Cutting, 4 in Overall Length, 0.274 in Maximum Depth of Cut, 2 Inserts, Insert Compatibility: EP.. 0708.., 3/4 in Head Length, 1/2 in Shank Diameter, Cylindrical Shank, 3-1/4 in Shank Length, ANSI Code: M1D050E0702C050L400, ISO Code: M1D050E0702C050L400, 0 deg Lead Angle, Yes Through Coolant
Spécifications
| UNSPSC | 23242105 |
|---|---|
| Application | Blank Ramping, Face, Helical, Side and Shoulder Milling |
| ANSI Code | M1D050E0702C050L400 |
| ISO Code | M1D050E0702C050L400 |
| Series | Mill 1-7™ |
| Maximum Depth of Cut | 0.274 in |
| Head Length | 3/4 in |
| Insert Compatibility | EP.. 0708.. |
| Overall Length | 4 in |
| Lead Angle | 0 deg |
| Shank Type | Cylindrical |
| Shank Diameter | 1/2 in |
| Through Coolant (Yes/No) | Oui |
| Cutting Diameter | 1/2 in |
| Number of Inserts | 2 |
| Shank Length | 3-1/4 in |
Caractéristiques
- Aggressive ramping angles
- High speed machining
