Marque
Cle-Line®
ENS. DE TARAUD M4 X 0.7
- GLD# 4241339282470158000
- MFG# C63212
- UPC 697334632122
Qté min. de commande 1
Description

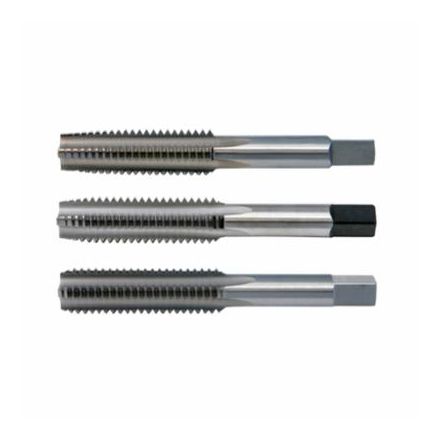

Cle-Line® Hand Tap Set, Standard Straight Flute Straight Shank, Series: 0404M, Measurement System: Metric, 3 Piece, M4x0.7 Size, 19.05 mm Thread Length, 53.97 mm Overall Length, 4 Flutes, Right Hand Cutting Direction, 4.27 mm Shank Diameter, Bottoming/Plug/Taper Chamfer, D4 Thread Limit, 6.35 mm L x 3.33 mm W Square, HSS, Bright, Rose Plastic® UniBox Package Type
Spécifications
| Application | For maintenance applications |
|---|---|
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Metric |
| Number of Flutes | 4 |
| Overall Length | 53.97 mm |
| Series | 0404M |
| Shank Diameter | 4.27 mm |
| Thread Length | 19.05 mm |
| Thread Limit | D4 |
| Type | Standard Straight Flute Straight Shank |
| Number of Pieces | 3 |
| Package Type | Rose Plastic® UniBox |
| Size | M4x0.7 |
| Square Size | 6.35 mm L x 3.33 mm W |
| Through Coolant (Yes/No) | Non |
| Adjustable Die (Yes/No) | Non |
| Chamfer | Bottoming, Plug, Taper |
| UNSPSC | 23241615 |
Caractéristiques
- Ground thread for economical tapping
- Taper chamfer generally used for hand operations
- Plug chamfer for general purpose applications
- Bottoming chamfer used to thread close to an obstruction or blind hole
Guides & Manuels
Cle_Line_C01112_Catalog.pdf
