Marque
CM®
COLUMBUS McKINNON LJ500 PINCE A PLAQUE NON-MARQUANTE 1/2T
- GLD# 4134659789080354000
- MFG# LJ500
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

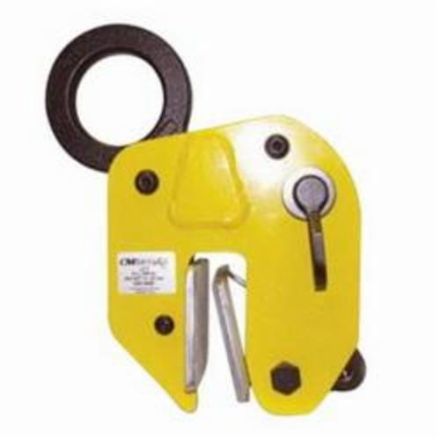

CM® Camlok™ Nonmarking Plate Clamp, Series: LJ Series, 60 to 1100 lb, 3/8 in Jaw Opening, 2.165 in Bail Opening Width, 5 in Overall Width, Load Activated Locking, Steel with Leather Liner Jaw
Spécifications
| Jaw Opening | 3/8 in |
|---|---|
| Load Capacity | 60 to 1100 lb |
| Locking Type | Load Activated |
| Material | Steel with Leather Liner Jaw |
| Series | Camlok™ LJ Series |
| Bail Opening Width | 2.165 in |
| Overall Width | 5 in |
| UNSPSC | 24101600 |
Caractéristiques
- Designed to lift thin-gauge steel plates, stainless steel, iron, timber and aluminum without marring or damaging the surface
- Lifts plates from the horizontal to vertical position and vice versa through 180 deg
- The performance on the leather jaws is not affected by standing water so the clamp can be used with submerged plasma cutting machines
- The LJ clamp is suitable for surface hardness greater than 300 brinell (32HRc)
- Minimum load will not affect the LJ clamps as they do not have teeth for bite
- The clamp may not be suitable for lifting highly polished plates where the polish process may leave lubricating compounds
- Design factor 4:1
