Marque
Power Team®
CYL, 20 TON, 7/16" STROKE
- GLD# 9890401
- MFG# RLS200
Qté min. de commande 1
Description

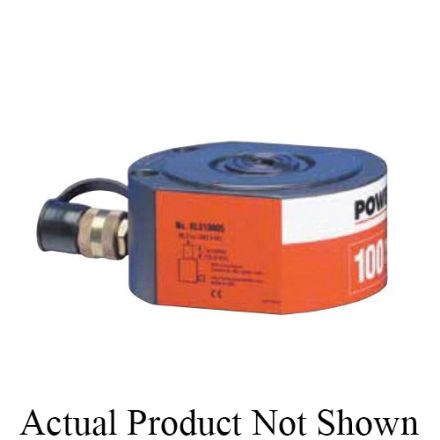

Power Team Vérin hydraulique , à toute épreuve profil bas soudé, gamme : rls, capacité 20 tonnes, 2-3/8 po trou dalésage, 7/ Longueur de course de 16 pouces, rétraction de 2 pouces, port de 21/32 pouces, diamètre de tige de 1-1/8 pouces, pression de 9029 lb/po-ca, 3 x 4 pouces dia ext
Spécifications

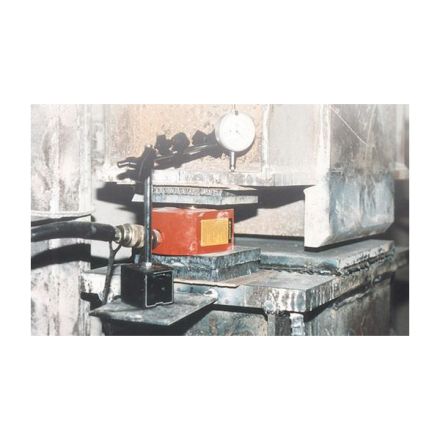

| Application | For confined areas from 1-5/8 to 4 in clearance |
|---|---|
| Capacity | 20 ton |
| Dimensions | 3 x 4 in OD |
| Port Size | 21/32 in |
| Pressure Rating | 9029 psi |
| Retract | 2 in H |
| Rod Diameter | 1-1/8 in |
| Stroke Length | 7/16 in |
| Type | Heavy Duty Low Profile Welded |
| Bore Size | 2-3/8 in |
| Series | RLS |
Caractéristiques
- Cylinder body, piston and gland nut power tech treated for corrosion and abrasion-resistance
- Standard domed piston rod (5 to 30 ton) or swivel cap (50 to 150 ton) minimize effects of off-center loading
- Unique heavy duty spring provides fast piston return
- A 9796 3/8 in NPTF female half coupler is standard with each cylinder
- Oil ports are 3/8 in NPTF
- Couplers on all cylinders are angled upward for extra clearance
