Marque
Dixon®
BOSS CLAMP 1-26/64 A 1-36/64''
- GLD# 4225436054200434000
- MFG# 156
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

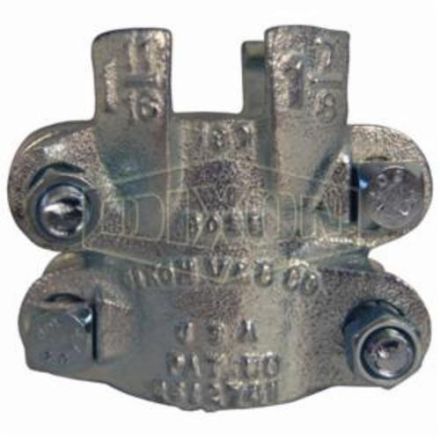

Dixon® 4-Bolt Clamp, Series: Boss™, 1-26/64 to 1-36/64 in Nominal, 3-3/16 in Length, 2-21/32 in Width, 21 ft-lb, Iron Band, Zinc Plated, Domestic
Spécifications
UNSPSC | 31162906 |
---|---|
Domestic/Import | Domestic |
Finish | Zinc Plated |
Series | Boss™ |
Width | 2-21/32 in |
Band Material | Iron |
Length | 3-3/16 in |
Nominal Size | 1-26/64 to 1-36/64 in Hose |
Torque Rating | 21 ft-lb |
Caractéristiques
- 4-bolt type with 4 gripping fingers and 2 clamp sections
- Bolts in Boss™ clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
- Always tighten bolts to their specified torque value
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
- Recommended for steam service up to 450 deg F
- The bolts used in the boss interlocking clamps are not standard bolts
- They vary from standard bolts in their length, diameter, overall thread length and material hardness
- These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only
- Torque values for clamps are based on dry bolts, the use of lubricant on bolts will adversely effect clamp performance
- Worn-out hose couplings can be dangerous
