Marque
3M™
RUBAN VINYLE ELECT. VERT COLOURFLEX-GRN
- GLD# 9935124
- MFG# 7100169430
- UPC 00076308925710
Temps de livraison estimé
24 à 48h
Qté min. de commande 1
Description

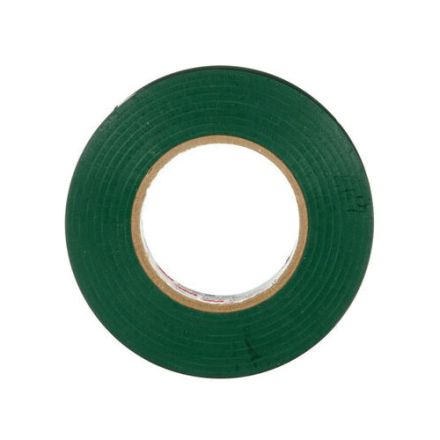

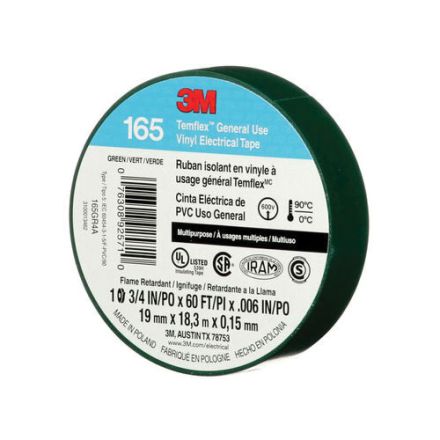

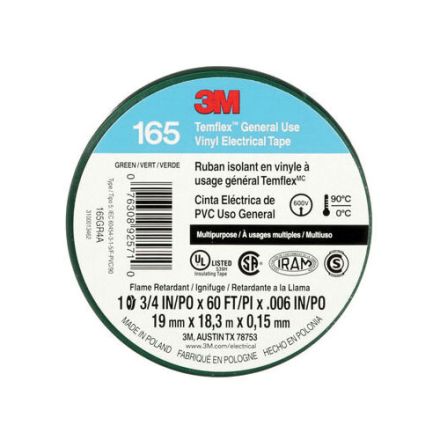

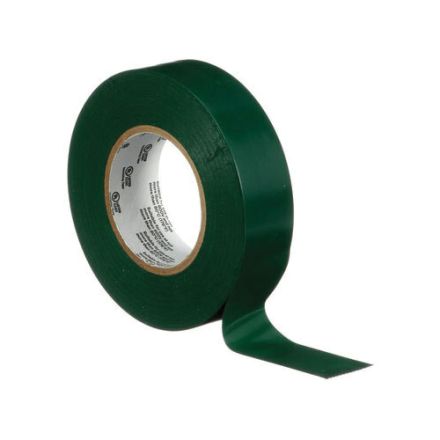

3M 7100169430, Multi-Purpose Flame-Retardant, Series: 165, 60 ft Length, 3/4 in Width, 6 mil Thickness, Vinyl, Green, Rubber Adhesive, PVC Backing, 18 in-oz Adhesion Strength, 600/1000 V, 1000 V/mil Dielectric Strength, 13 in-lb Tensile Strength, 194 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: CSA C22.2 No. 197 File No. 048769 Class 9052-02|OANZ File No. E129200|VDE Certified|UL 510
Spécifications
| Couleur | Green |
|---|---|
| UNSPSC | 31201502 |
| Length | 60 ft |
| Maximum Operating Temperature | 194 deg F |
| Minimum Operating Temperature | 32 deg F |
| Width | 3/4 in |
| Application | Residential, Commercial and Manufacturing (OEM) Environments |
| Adhesion Strength | 18 in-oz |
| Dielectric Strength | 1000 V/mil |
| Material Type | Vinyl |
| Series | 165 |
| Specifications Met | CSA C22.2 No. 197 File No. 048769 Class 9052-02|OANZ File No. E129200|VDE Certified|UL 510 |
| Tensile Strength | 13 in-lb |
| Thickness | 6 mil |
| Type | Multi-Purpose Flame-Retardant |
| Voltage Rating | 600/1000 V |
| Adhesive Material | Rubber |
| Backing Material | PVC |
Caractéristiques
- Resists abrasion, moisture, alkalis, solvents and acids
- Flame-retardant and inhibits the corrosion of electrical conductors
- Made of durable PVC
- Compatible with rubber and synthetic splicing compounds
- Suitable for moderate indoor and weather protected outdoor uses
- Color coding for phase identification, wire marking and safety
- Electrical insulation for wire and cable splices rated up to 600 V
- Harnessing and bundling of wires and cables
- Wire pulling and fishing
