Brand
Dixon®

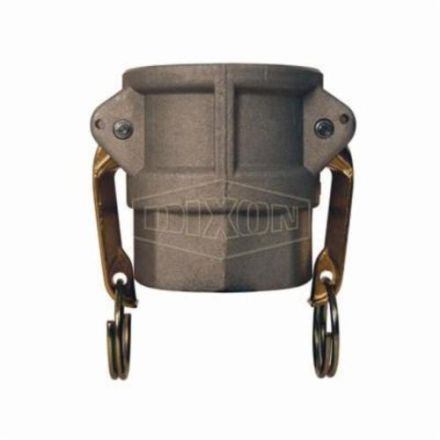

3" Type "D" Alum
- GLD# 4077257545090414000
- MFG# G300-D-AL
Min. Order Qty 1
Description
Dixon coupleur à came et rainure, type d, gamme : global, type de raccord/connecteur : coupleur, 3 po taille nominale, coupleur femelle x fnpt, longueur 3-3/4 po, 125 lb/po-ca, aluminium, import
Specifications
| UNSPSC | 40141734 |
|---|---|
| Application | Designed for use with liquids |
| Domestic/Import | Import |
| End Style | Female Coupler x FNPT |
| Fitting/Connector Type | Coupling |
| Material | Aluminum |
| Nominal Size | 3 in |
| Pressure Rating | 125 psi |
| Series | Global |
| Type | Type D |
| Length | 3-3/4 in |
Features
- 9-25/32 in open x 5-5/32 in closed across cam arm
- A380 permanent mold aluminum
- Brass handle
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
Guides & Manuals
Dixon_Valve_Coupling_G300-D-AL_Catalog.pdf
