Brand
Gray Tools

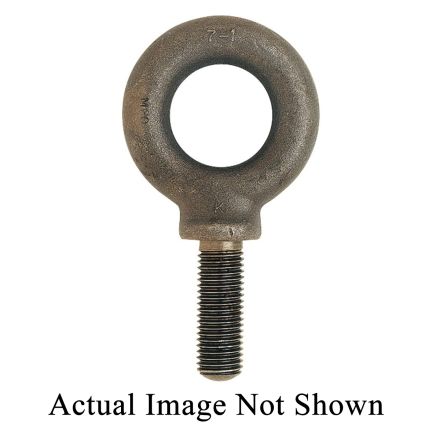

BOULON A OEIL A EMBASE 8 MM X 1,25
- GLD# 4014547394900132000
- MFG# BS8M
- UPC 067965034525
Min. Order Qty 1
Description
Gray Tools Eye Bolt, Self-Colored Shoulder Pattern, Measurement System: Metric, M8x1.25 Thread Size, 31.7 mm Shank Length, Forged Carbon Steel, Uncoated, 25 mm Inside Eye Diameter, 43 mm Outside Eye Diameter, UNC-2A, 82.5 mm Overall Length, 500/1110 lb Working, 31.7 mm Thread Length, 65000 psi Tensile, Grade: C1030, Material Specification: ANSI B18.15, ASTM A489
Specifications
| UNSPSC | 31161610 |
|---|---|
| Diameter - Thread Size | M8x1.25 |
| Finish | Uncoated |
| Grade | C1030 |
| Inside Eye Diameter | 25 mm |
| Material | Forged Carbon Steel |
| Material Specification | ANSI B18.15, ASTM A489 |
| Measurement System | Metric |
| Outside Eye Diameter | 43 mm |
| Overall Length | 82.5 mm |
| Shank Length | 31.7 mm |
| Tensile Strength | 65000 psi |
| Thread Length | 31.7 mm |
| Thread Type | UNC-2A |
| Type | Self-Colored Shoulder Pattern |
| Working Load | 500/1110 lb |
Features
- Never apply loads greater than rated capacity to any eyebolt
- Load should never be applied at more than a 45 deg angle from the bolt centerline
- The rated capacity is reduced to 25% when the load is applied at a 45 deg angle to the eyebolt centerline
