Brand
Cle-Force™
ENSEMBLE DE TARAUD 1/4-20NC SET
- GLD# 4188549129320360009
- MFG# C69110
- UPC 697334691105
Min. Order Qty 1
Description

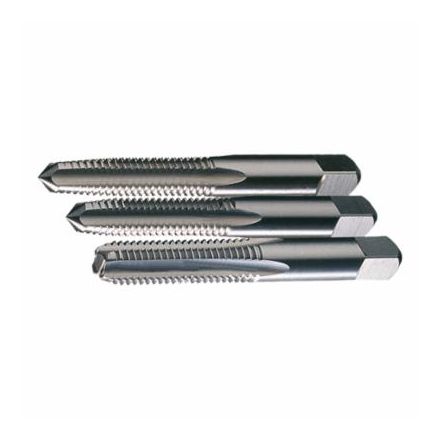

Cle-Force™ Hand Tap Set, Standard Straight Flute Straight Shank, Series: 1693, Measurement System: Imperial, 3 Piece, 1/4-20 Size, UNC Thread Standard, 1 in Thread Length, 2-1/2 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 0.255 in Shank Diameter, Bottoming/Plug/Taper Chamfer, 0.3125 in L x 0.191 in W Square, HSS, Bright, Generic Plastic Case Package Type
Specifications
| Application | For general purpose applications |
|---|---|
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 2-1/2 in |
| Series | 1693 |
| Shank Diameter | 0.255 in |
| Thread Length | 1 in |
| Thread Standard | UNC |
| Type | Standard Straight Flute Straight Shank |
| Number of Pieces | 3 |
| Package Type | Generic Plastic Case |
| Size | 1/4-20 |
| Square Size | 0.3125 in L x 0.191 in W |
| Through Coolant (Yes/No) | No |
| Adjustable Die (Yes/No) | No |
| Chamfer | Bottoming, Plug, Taper |
| UNSPSC | 23241615 |
Features
- Ground thread for economical tapping
- Taper chamfer generally used for hand operations
- Plug chamfer for general purpose applications
- Bottoming chamfer used to thread close to an obstruction or blind hole
