Brand
Cle-Line®
ENS. DE TARAUD 1/4-20
- GLD# 4181857059740123000
- MFG# C62032
- UPC 697334620327
Estimated Delivery Time
24 to 48h
Min. Order Qty 1
Description

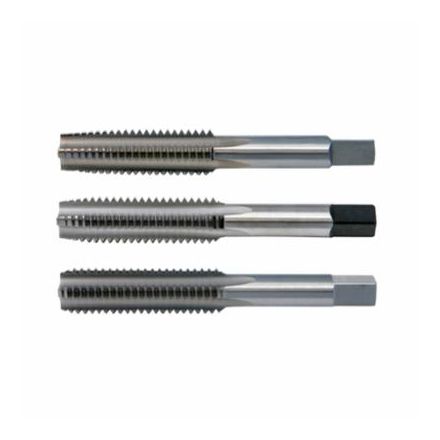

Cle-Line® Hand Tap Set, Standard Straight Flute Straight Shank, Series: 404, Measurement System: Imperial, 3 Piece, 1/4-20 Size, UNC Thread Standard, 1 in Thread Length, 2-1/2 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 0.255 in Shank Diameter, Bottoming/Plug/Taper Chamfer, H3 Thread Limit, 0.3125 in L x 0.191 in W Square, HSS, Bright, Rose Plastic® UniBox Package Type
Specifications
| Application | For maintenance applications |
|---|---|
| Cutting Direction | Right Hand |
| Finish/Coating | Bright |
| Material | HSS |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Overall Length | 2-1/2 in |
| Series | 404 |
| Shank Diameter | 0.255 in |
| Thread Length | 1 in |
| Thread Limit | H3 |
| Thread Standard | UNC |
| Type | Standard Straight Flute Straight Shank |
| Number of Pieces | 3 |
| Package Type | Rose plastic® unibox |
| Size | 1/4-20 |
| Square Size | 0.3125 in L x 0.191 in W |
| Through Coolant (Yes/No) | No |
| Adjustable Die (Yes/No) | No |
| Chamfer | Bottoming, Plug, Taper |
| UNSPSC | 23241615 |
Features
- Ground thread for economical tapping
- Taper chamfer generally used for hand operations
- Plug chamfer for general purpose applications
- Bottoming chamfer used to thread close to an obstruction or blind hole
