Brand
Cleveland®

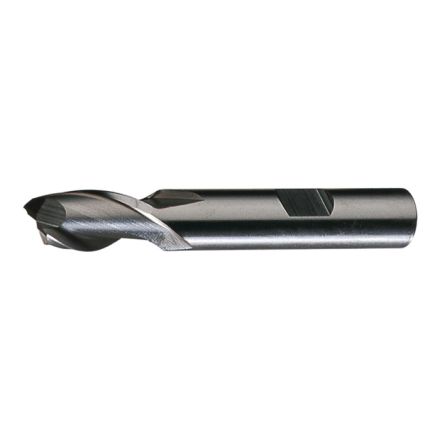

7/16 FRAISE 2 FL (ENDMILL) X 3/8 SHANK TiN
- GLD# 4190435398490381025
- MFG# C33768
- UPC 697334337683
Min. Order Qty 1
Description
Cleveland® End Mill, Center Cutting General Purpose Single End Square End, Series: HG-2, 7/16 in Diameter Cutter, 2-11/16 in Overall Length, 13/16 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weld-On Flat Shank, HSS, TiN Coated
Specifications
| UNSPSC | 27112803 |
|---|---|
| Application | General Finishing Applications |
| Cutter Diameter | 7/16 in |
| Cutting Direction | Right Hand |
| Finish | TiN Coated |
| Flute Type | Spiral |
| Helix Angle | 30 deg |
| Length of Cut | 13/16 in |
| Material | HSS |
| Number of Flutes | 2 |
| Overall Length | 2-11/16 in |
| Series | HG-2 |
| Shank Diameter | 3/8 in |
| Shank Type | Straight/Weldon Flat |
| Type | Center Cutting General Purpose Single End Square End |
Features
- 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
- Coatings reduce heat and abrasion to increase tool life
- The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
- Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
- TiN (titanium nitride) coating in gold color intended for aggressive machining
- TiN coating increase machining speed 25 to 30% versus bright speeds
- Applicable on alloy steel, tool steel, carbon steel and cast iron
