Brand
Cle-Line®

1894 1-13/64 TAPER SHK #4TS

  • GLD#
    GREEN-114592
  • MFG#
    C20577
Min. Order Qty 1
Description

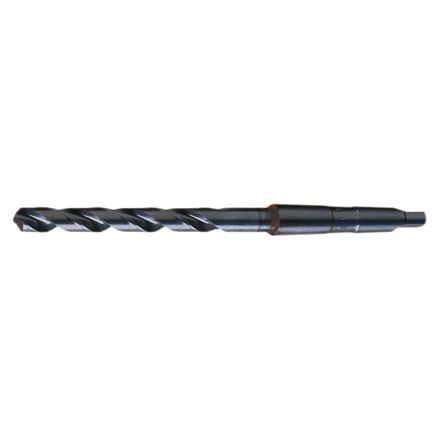

Cle-Line® Taper Shank Drill Bit, General Purpose Regular Helix, Series: 1894, Imperial, 1-13/64 in Drill - Fraction, 1.2031 in Drill - Decimal Inch, 13-1/8 in Overall Length, 7-1/2 in Cutting Depth, 2 Flutes, Spiral Flute, 7-1/2 in Flute Length, #4 Morse Taper Shank Taper Designation, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black Oxide, Applicable Materials: Alloy Steel, Carbon Steel, Low Carbon Steel, Gray Cast Iron and Nodular Cast Iron
Specifications
More Information
UNSPSC23241606
ApplicationGeneral Purpose Applications
Cutting Depth7-1/2 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch1.2031 in
Drill Size - Fraction1-13/64 in
FinishBlack Oxide
Flute Length7-1/2 in
Flute TypeSpiral
MaterialHSS
Overall Length13-1/8 in
Point TypeRadial
Series1894
TypeGeneral Purpose Regular Helix
Drill Diameter Measurement SystemImperial
Number of Flutes2
Through Coolant (Yes/No)Yes
Shank Taper Designation#4 Morse Taper
Point Angle118 deg
Applicable MaterialsAlloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron
Features
  • HSS substrate engineered for toughness and ideal for portable drilling and maintenance applications
  • Black oxide finish for increased wear resistance and improved lubricity, reduced chip welding and galling
