159 #25

GLD#
GREEN-103215
MFG#
49395

Estimated Delivery Time

24 to 48h

Min. Order Qty 1

Description

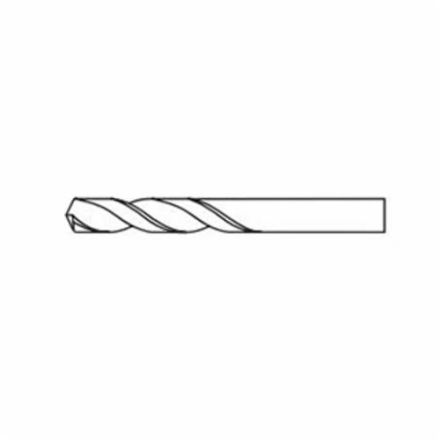

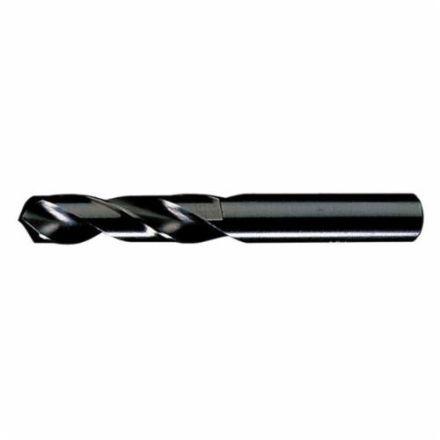

Chicago-Latrobe® Screw Machine Drill, Heavy Duty, Series: 159, Imperial, #25 Drill - Wire, 0.1495 in Drill - Decimal Inch, 2-1/16 in Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 1 in Flute Length, 0.1495 in Dia x 1.0625 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Steam Oxide, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel

Specifications

More Information
UNSPSC	23241606
Cutting Depth	3XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Drill Size - Decimal Inch	0.1495 in
Finish	Black Steam Oxide
Flute Length	1 in
Flute Type	Right Spiral
Material	HSS
Overall Length	2-1/16 in
Point Type	Split
Series	159
Shank Size	0.1495 in Dia x 1.0625 in L
Shank Type	Straight
Type	Heavy Duty
Drill Diameter Measurement System	Imperial
Number of Flutes	2
Through Coolant (Yes/No)	No
Drill Size - Wire	#25
Point Angle	135 deg
Applicable Materials	Alloy Steel, Carbon Steel, Cast Iron, Tool Steel

Features

Heavy duty geometry for drilling tougher materials by hand or machine
Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
135 deg P3 split point is self-centering for reduced thrust and easier penetration
